1. 17AMH thermostat’s Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification
   1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
   2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
   3. Operating temperature range: 50-180°C
   4. Temperature tolerance: ±2°C±3°C±5°C
   5. Reset temperature: 10~45 degrees in off temperature decline.
   6. Working times: Over 10000 times
   7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

1. Trip off temperature in °C Code

The thermal protection switch is normally located on the A/C compressor housings. It. is used to prevent compressor damage (overheat) through internal friction. This switch senses the compressor case temperature and once this case. temperature reaches a predetermined figure the electrical circuit to the compressor.

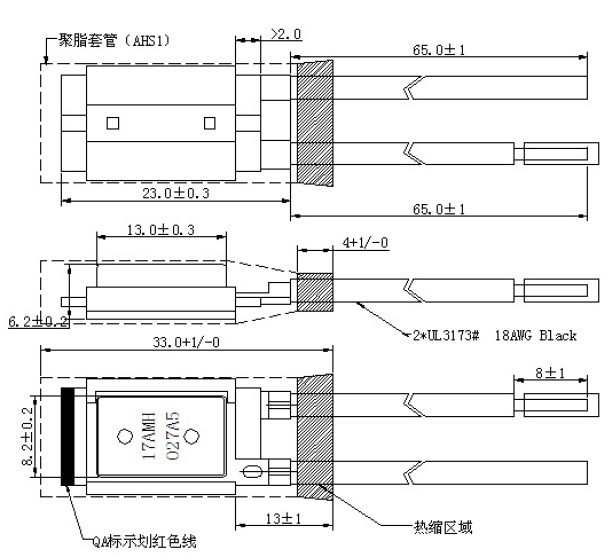

1. Product Drawing

3. 17AM temperature protector’s Application

all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

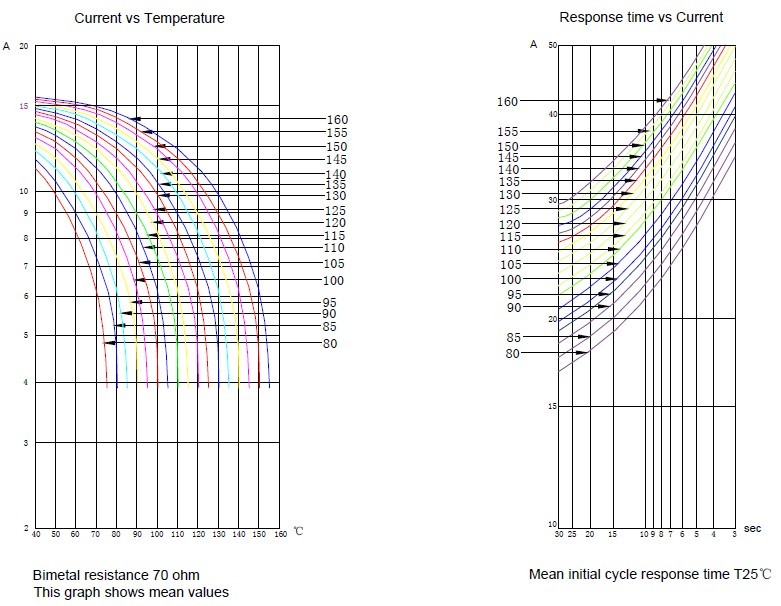

4. 17AM thermostat’s A/°C and A/T Graph:

4. 17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

5. 17AMH thermostat’s Principle and structure

4. 17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

   2. 17AM thermal protector’s Specification

   2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

   2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

   2.3. Operating temperature range: 50-180°C

   2.4. Temperature tolerance: ±2°C±3°C±5°C

   2.5. Reset temperature: 10~45 degrees in off temperature decline.

   2.6. Working times: Over 10000 times

   2.7. Code syste

   17AM XXX A / B 5 A,B,C,D………..Z

   (17AMH): The number of product series

   (XXX): Trip off temperature in °C Code

   (A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

   (5): OFF Temperature Tolerance Code

   (A, B, C, D………..Z): Different type of connecting wire

   2.8. Trip off temperature in °C Code

   Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
   55°C	018	90°C	025	125°C	032	160°C	039
   60°C	019	95°C	026	130°C	033	165°C	040
   65°C	020	100°C	027	135°C	034	170°C	041
   70°C	021	105°C	028	140°C	035	175°C	042
   75°C	022	110°C	029	145°C	036	180°C	043
   80°C	023	115°C	030	150°C	037
   85°C	024	120°C	031	155°C	038

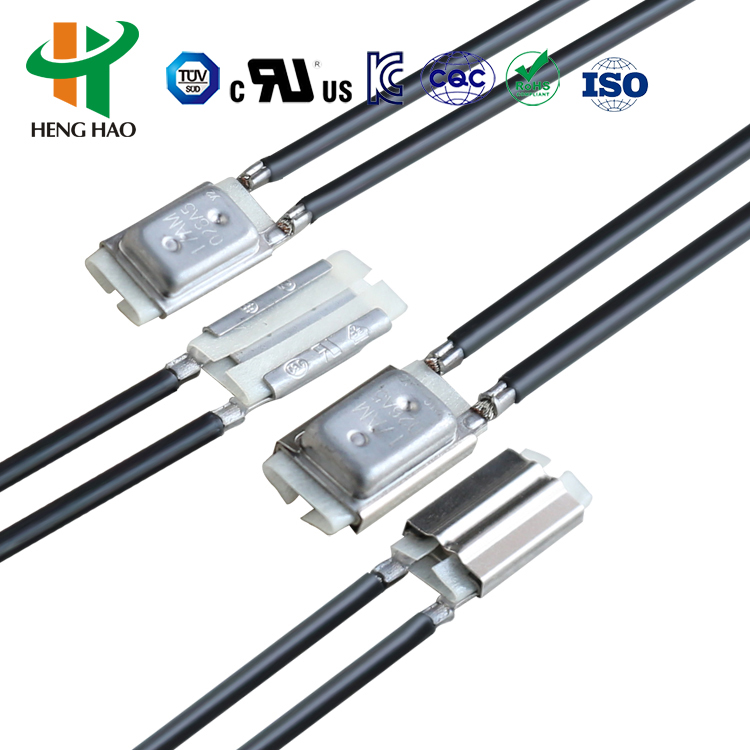

17AM035A5 auto reset thermal fuse
